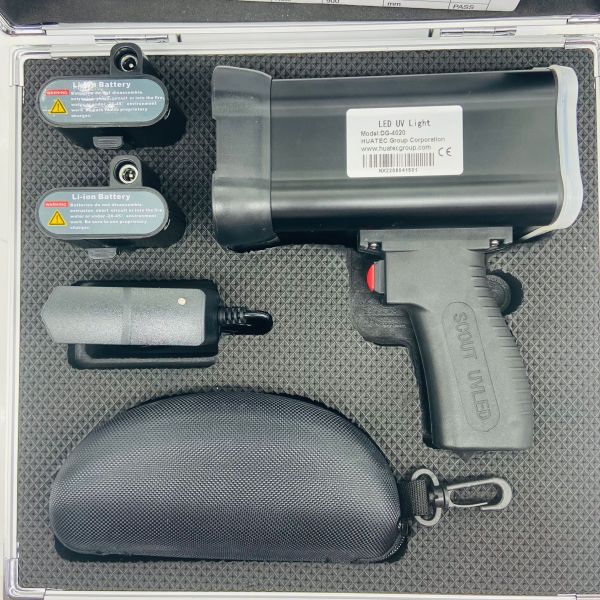

Handheld LED-UV Light Dual AC Directly and DC Battery Operation

Name: Handheld LEDUV Light Dual AC Directly and DC Battery Operation
Brand: HUATEC
Price: 1 USD

Wholesale Handheld LED-UV Light Dual AC Directly and DC Battery Operation from china suppliers

Brand Name : HUATEC

Model Number : DG-4020

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T,Western Union/Paypal,L/C,Western Union

Supply Ability : 100PCS per month

Delivery Time : 5-8 days after payment

Packaging Details : in Carton box

Name : Handheld LED UV Lamp

Application : UV light for magnetic particle inspection

Use : UV leak detection light

Keywords : Handheld LED UV Lamp

Contact Now

Handheld LED-UV Light Dual AC Directly and DC Battery Operation

Main purpose
Fluorescent Magnetic Particle Inspection (MPI)
Fluorescent Penetrating Inspection (FPI)
Oil contamination, leakage, and fluorescent labeling inspection

Feature

● Strictly comply with ASTM E3022

● UV-B content is 0

● Battery life of 2-3 hours

● Quick Battery Replacement

● Only 560g of battery is included

● Temperature rise of external surface under continuous operation < 8K (8℃)

● It has colour filter glass, and the white light content is less than 20LUX

● Can work with AC directly and also with DC battery

DG-4020 Dual AC DC Operation Handheld LED UV Lamp parameter

Project	Parameter / mode
Style	Handheld
UV(Light)-FLUX Indoor temperature 25℃	6000uW/cm²
White light content	≤3LUX
Irradiation area at depth of 380mm: (≥1000uw/cm²)	Φ300mm
Flux error	0-40℃ ±10%
Light distribution characteristics	Central light distribution
Power Supply	AC100- 240V,50/60Hz
Power	UV LED-12VA
Wavelength	Room temperature 25℃, 365nm±3nm (UVA)
Overall dimension	157. 5mm (W) 76mm (D) 177mm (H)
Weight	560g including battery
Battery capacity	2200mA/H 12.6V
Charging time	2-3H
Battery life (cumulative time)	UV LED 2-3H

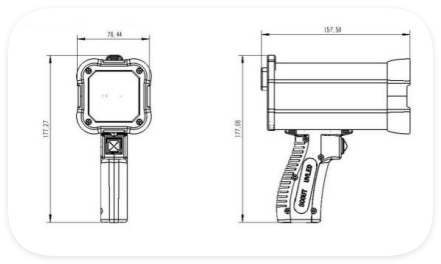

Dimension: (mm)

Product Tags:

handheld LED-UV lamp for magnetic testing

dual AC DC battery UV lamp

portable LED-UV inspection light

Handheld LED-UV Light Dual AC Directly and DC Battery Operation Images
